Anti-Slip Wire Mesh Film Faced Plywood
Anti-Slip Wire Mesh Film Faced Plywood

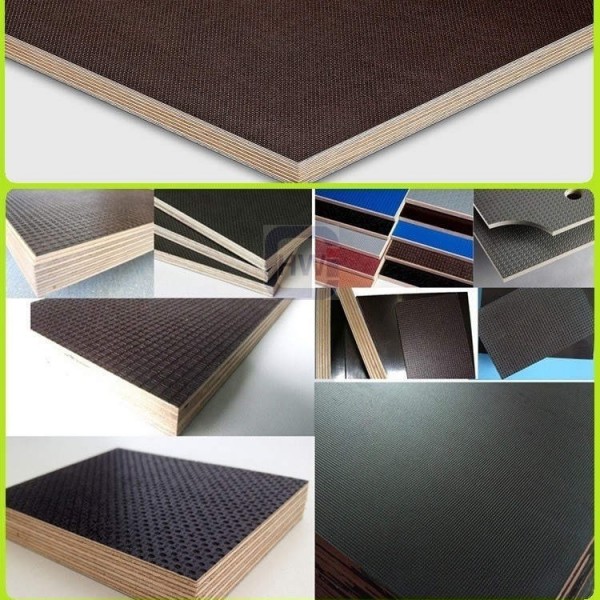

There is a new pattern of anti-slip film-faced plywood called Hexagonal Anti-slip Film Faced Plywood, which is different from the pattern of wire-mesh anti-slip film-faced plywood.
- Face and Back:
Hexagonal Pattern Wire Mesh Grey / Brown / Black Phenolic Resin Film 220 g/m2 or other colors upon request
Domestic black /brown wire mesh/smooth film, Imported wire mesh/smooth film
- Species Of Core Veneers:
Russian Birch Ply / Baltic Birch Ply / Eucalyptus Ply / Poplar Ply / Combi Ply
1200mm X 2440mm, 1500mm X 3000mm, or upon request
Width: 1200mm, 1220mm, 1250mm, 1500mm, 1525mm, 1800mm, 1830mm, 2000mm, or another width no more than 2000mm;
Length: 2400mm, 2440mm, 2500mm, 3000mm, 3050mm, 3600mm, 3660mm, 4270mm, 4575mm, 4880mm, 5185mm or another length no more than 6000mm;
9mm / 12mm / 15mm / 18mm / 21mm / 24mm / 27mm (1/8″, 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1-1/8″ 1-1/4″, 1-1/2″ ) or other thickness no more than 50mm
Sealed by water-proof paint
- Usage :
Construction formwork panel/ Stairs/car trailers/ Container floor and wall/automotive engineering floor and side walls and
other special applications etc.
Our HW product series is antislip/nonskid film-faced plywood with 1 side wire mesh film and the other side smooth phenolic
resin coating/film. The application of this our Meshplex is mainly: antislip floor and wall in car trailer/container body and also
some other special occasions like stairs etc. As long as you have anti-slip demand, you can consider our Meshplex.Except for the anti-slip function,
Meshplex is also a strong panel(especially for flooring purposes).
It also enjoys the same properties as film-faced plywood in regards to moisture resistance/proof (depending on the bonding glue type).
Contact us if you need more info.
Advantages of Anti-Slip Wire Mesh Film-Faced Plywood:
- The phenolic glue of the film-faced plywood can smooth the surface of concrete; If one side is anti-slip, the Hexagonal / Mesh surface provides anti-slip protection
- High Wear-Resistant, Anti-Cracking, Alkaline-Resistant, Anti-Abrasive, Anti-erosive;
- Resistant to the effect of various environments, including chemicals, Resistance to temperature variation -40 to +50 °C
- The water-proof coating extends the working life of the concrete;
- There is no color contamination between the concrete and the concrete shuttering plywood;
- Low levels of aldehydes, phenol, and other toxic emissions;
- The product can be cut to a small size to use again if it is cut, please spray waterproof paint on the edges which have been cut;
- Birch core, Combi core plywood is more firmly than poplar core, and the best core is Birch.
Features & Advantages of our Anti-slip Film Faced Plywood:
- Non-slip surface: The wire mesh on the surface of the plywood provides excellent traction and stability, making it a safe and reliable material for flooring and other applications where a non-slip surface is essential.
- Durable: The film-faced plywood used in this product is a high-quality, durable material that can withstand heavy use and resist moisture, wear, scratches, and other types of damage.
- Easy to clean: The smooth surface of the film-faced plywood and the wire mesh make this material easy to clean and maintain.
- Versatile: Anti-Slip Wire Mesh Film Faced Plywood is suitable for a wide range of applications, including stage flooring, scaffolding, and truck flooring.
- Customizable: This material can be cut and shaped to fit different requirements, making it a versatile solution for various projects.
- Resistant to chemicals: The film-faced plywood used in this product is resistant to chemicals, making it suitable for applications in chemical plants and other industries where exposure to chemicals is common.
- Our factory has produced anti-slip film-faced plywood for over 10 years. Experienced workers and Fine Management lead to premium quality for the global market.
Delivery Instructions of Anti-Slip Wire Mesh Film-Faced Plywood:
|Packing||Standard Export Pallet Packing||Inner Packing||The pallet is wrapped with a 0.20mm plastic bag|
|Outer Packing||The pallet is covered with plywood or carton and then PVC/steel tapes for strength|
Packaging and Containerization of Anti-Slip Wire Mesh Film-Faced Plywood:
Application of Anti-Slip Wire Mesh Film-Faced Plywood:
- Flooring: It is commonly used as flooring in industrial buildings, warehouses, factories, and construction sites. Its anti-slip properties make it suitable for areas where there is a high risk of slips and falls, such as loading docks, walkways, and ramps.
- Scaffolding: Anti-slip wire mesh film-faced plywood is used as a decking material for scaffolding. Its anti-slip properties make it safe for workers to walk and work on, even in wet or oily conditions.
- Formwork: The anti-slip wire mesh coating on the plywood helps to prevent concrete from sticking to the surface during the casting process. This makes it easy to remove the formwork after the concrete has been set.
- Transport: Anti-slip wire mesh film-faced plywood is used as trailer and truck bed flooring. Its non-slip properties make it safe for the transportation of goods and materials.
- Our Anti-Slip/Skid Film Faced Plywood widely use for vehicle floors. flight cases, ship decking, transport platforms, etc.
Q: What is Anti-Slip Wire Mesh Film-Faced Plywood?
A: Anti-Slip Wire Mesh Film Faced Plywood is a construction material that consists of film-faced plywood with a wire mesh bonded to its surface. It is used for flooring and other applications that require a non-slip surface.
Q: What are the benefits of Anti-Slip Wire Mesh Film Faced Plywood?
A: The benefits of Anti-Slip Wire Mesh Film Faced Plywood include a non-slip surface, durability, easy maintenance, versatility, and resistance to chemicals. It is an ideal material for applications such as stage flooring, scaffolding, and truck flooring.
Q: How is anti-slip wire mesh film-faced plywood made?
A: Anti-Slip Wire Mesh Film Faced Plywood is made by bonding a wire mesh to the surface of a film-faced plywood panel. The wire mesh is made from high-tensile steel, and the plywood is a high-quality, durable material that is resistant to moisture and wear.
Q: What are the applications of Anti-Slip Wire Mesh Film Faced Plywood?
A: Anti-Slip Wire Mesh Film Faced Plywood is commonly used in applications such as stage flooring, scaffolding, and truck flooring. Its non-slip surface provides a safe working environment, reducing the risk of accidents and injuries.
Q: Is Anti-Slip Wire Mesh Film-Faced Plywood Customizable?
A: Yes, Anti-Slip Wire Mesh Film Faced Plywood can be cut and shaped to fit different requirements, making it a versatile solution for various projects.
